Business Elegance
The PRO B660M-G is a business-oriented micro-ATX motherboard featuring the latest Intel B660 chipset and DDR5 memory that includes customizable RGB headers and EZ debug.
The PRO B660M-G is a business-oriented micro-ATX motherboard featuring the latest Intel B660 chipset and DDR5 memory that includes customizable RGB headers and EZ debug.
The PRO B660M-G motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: Micro-ATX
Socket Type: LGA 1700
Chipset: Intel B660
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
* 1 x PCI-e 4.0 x16 slot (with Steel Armor)
* 1 x PCI-e 3.0 x1 slot
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
The PRO B660M-G motherboard features MSI's latest M.2 slots (Intel Optane supported):
* 2 x Gen4 x4 64Gb/s slots
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

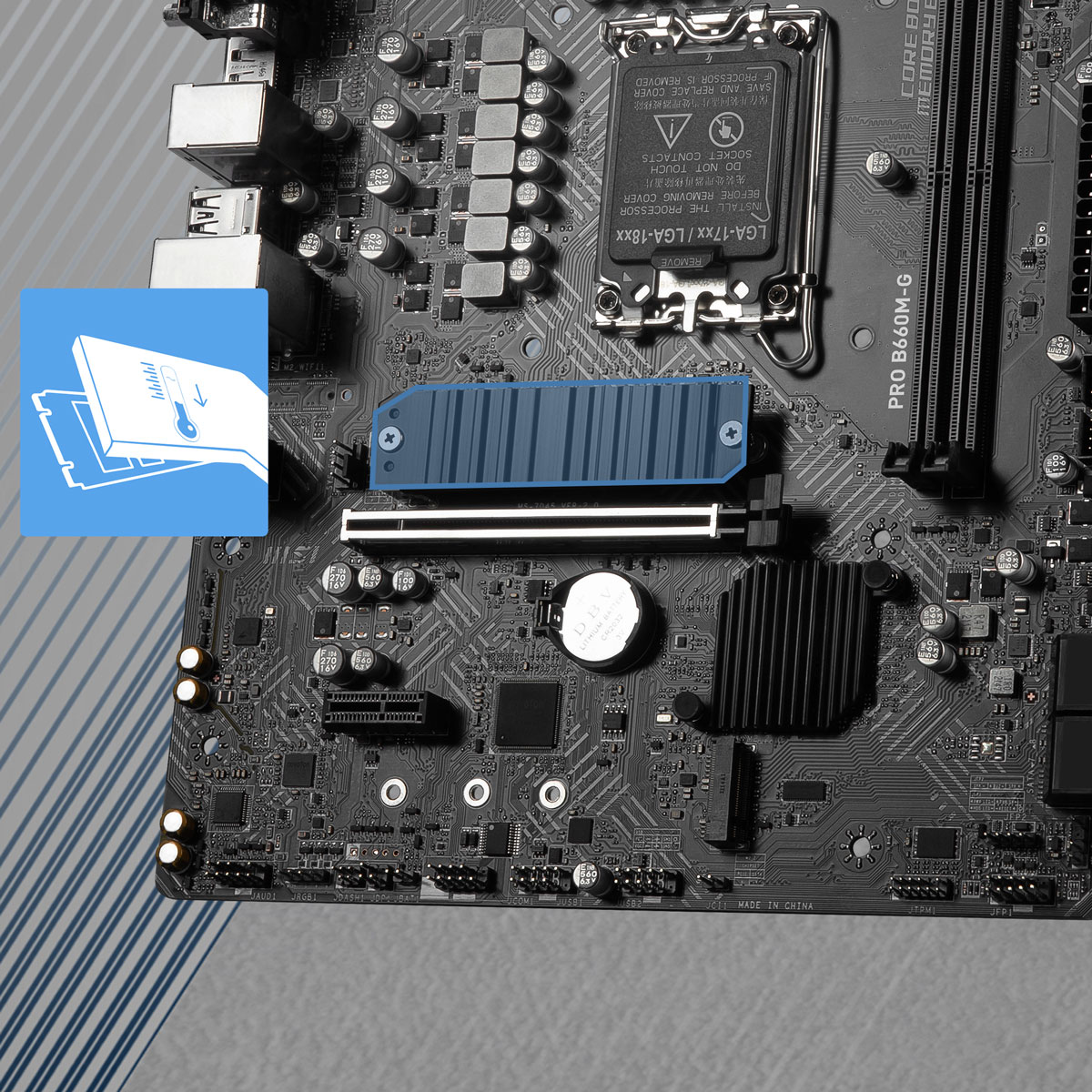

M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
2.5G LAN: A 2.5Gbps LAN controller delivers a premium network
experience.
4K & Legacy Video Support: Featuring HDMI, DisplayPort and VGA port, supports both digital and legacy display.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
| Chipset Vendor | INTEL |
|---|---|
| Model Name | PRO B660M-G DDR4 |
| CPU Support | Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors |
| Chipset | Intel® B660 Chipset |
| Graphics Interface | 1x PCIe 4.0 x16 slot |
| Memory Support | 2 DIMMs, Dual Channel DDR4-4600+MHz(OC) |
| Storage | 2x M.2 Gen4 x4 64Gbps slots, supports Intel® Optane™ Technology 4x SATA 6Gbps ports |
| USB ports | 6x USB 3.2 Gen 1 5Gbps (6 Type-A), 6x USB 2.0 |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost |
